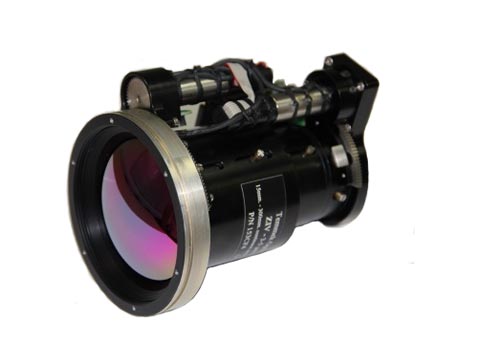

Ziv 300
- Home
- Products
- Ziv 300
FL 15 – 300 mm , F/4 , Continuous Optical Zoom, Support up to 640X512/ 15µ pitch detectors.
Special Features
- Parfocal Lens
- Auto Thermal Compensation
- Supports Several Detector Types
- Optical Uniform White Noise Position
- IP 66/67 Sealed Front (Optional)
- Up to 5 preset discrete zoom positions on continuous zoom lenses
Download product brochure
| Optical | |
|---|---|
| Focal length | 15-300 |
| F# | 4 |
| Average Transmission | >85% |
| Horizontal FOV | 35.5°- 1.8° |
| Vertical FOV | 28.7°-1.4° |
| Back Focal Distance(From FPA) | Multiple Detector Compatibility |
| Detector | 640 X 512/ 15µ |
| Mechanical | |
| Interface | Precision Attachment (Customize Interface) |
| Focus Mechanism | Motorized |
| Weight | 870g |
| Dimension | L:130mm, Ø:96mm |
| Electrical & Communications | |
| Power Input | 12VDC,1A |
| Communications | RS-422 full duplex, BR: 19200,n,8,1 |
| Environmental | |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +70°C |
| External Coating | HD AR (Optional DLC) |
| Shock & Vibration | Mil-STD-810G |
| Frontal Sealing | Optional IP66/67 |
